Magnum
Magnum: Pathfinder 350 25 mph

Magnum

Magnum: Pathfinder 350 25 mph

$1,599.99
(No reviews yet) Write a Review
Condition:
New
Adding to cart… The item has been added

Description

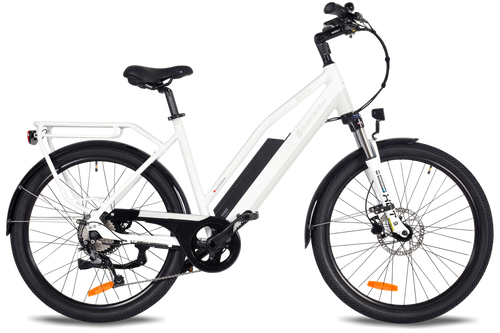

Magnum Electric: Pathfinder 350 25 mph

An affordable Electric Fat Bikes with a comfortable Step-thru frame for Gents and Ladies for easy mounting and dismounting. 350 watt motor paired with a large 36 volt 13 amp hour battery pack, offers both pedal assist and throttle mode. One year comprehensive warranty. Now available at Bike Attack Electric in Santa Monica.



Electronic Details

Motor Brand

Vision In-House

Motor Type

Rear Mounted Geared Hub

Motor Nominal Output

350 Watts

Motor Peak Output

500 Watts

Battery Brand

LG

Battery Voltage

36 Volts

Battery Ah

13Ah

Battery Wh

468 Wh

Battery Chemistry

Li-NMC

Battery Charge Time (from empty)

6.5 Hours

Minimum Range

20 Miles (32 Kilometers)

Maximum Range

40 Miles (64 Kilometers)

Display Type

Vision LCD Display

Display Readouts

Battery Charge Level (Infographic with 5 Bars), Current Speed, Assist Level (0-5, Class 1; 0-6, Class 2 & 3), Odometer, Trip Distance, Average Speed, Max Speed

Display Accessories

Drive Mode

Cadence Sensing Pedal Assist, Twist Throttle, Walk Mode

Top Speed

Up to 25 mph (40 km) with pedal assist, up to 20 mph with throttle only

Lights

Integrated Front And Rear Lights



Mechanical Details

Frame material

Aluminum Alloy

Frame size

15.75” (40 cm)

Frame Type

Fork Details

Rigid Aluminum Alloy

Gearing details

Shimano 7-Speed

Shifter Details

Shimano 7-Speed

Crank

Aluminum Alloy, 44T, 165mm

Pedals

Wide Plastic Platform with Reflectors

Stem

Adjustable Aluminum Alloy

Brakes

Mechanical Disc Brakes

Grips

Flat Rubber, Pressure Fit, Half-Grip on Right for Twist Throttle

Saddle

Velo Gel Comfort

Tire Brand

CST Big Boat 20 x 3.0

Wheel size

20"

Fenders

Front and Rear Included

Chain

KMC Z-Chain



Measurements

Seat Tube

15.75" (40 cm)

Reach

17" (43 cm)

Stand Over Height

16" (40 cm)

Virtual Top Tube Length

24" (61 cm)

Min Saddle Height

20.5" (52 cm)

Max Saddle Height

29.5" (75 cm)

Width

24" (61 cm)

Wheelbase

43" (109 cm)

Length

63.75" (162 cm)

Total Weight

59 lbs (26.75 kg)

Battery Weight

7.5 lbs (3.4 kg)

Recommended Minimum Rider Height

4’10”



What’s Included

Kickstand

Includes Center-Mounted Single Side Adjustable Length Kickstand

Bell

Includes Bell

Charger

36V / 2A

Front Rack

Optional Front Rack (Not Included)

Rear Rack

Includes Rear Rack

Fenders

Front and Rear Fenders

Accessory Mounts

Bottle Cage, Front Rack



RIDE SMOOTHER

20″ x 3” Fat Tire Wheels

The Pathfinder’s 3” fat tires absorb shock and heighten stability. They will improve handling over unexpected pot holes and uneven pavement, providing extra traction, control, and comfort.



THE BATTERY.

The heart of the Magnum Pathfinder 350 is the integrated, long-range 36V / 13Ah / 468Wh battery that powers up to 40 mile-long rides, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

13Ah

40 Miles (64 Kilometers) Max Range

6.5 Hours Charge Time



Highlights

  • Category

Fat Tire

  • Class

Can be configured to a Class 1, 2, or 3 E-Bike.

  • Frame Type

Low-step

  • Seating

Relaxed

  • Perfect For

Paved / Light Trails / Recreation
