Orbea: GAIN M10I - 2026

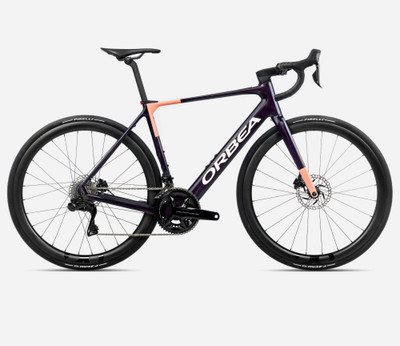

Orbea | GAIN M10I 20MPH | FANTASY PURPLE CARBON VIEW (GLOSS) - ORANGE CLOUD (MATT)

Orbea

Orbea: GAIN M10I - 2026

$9,999.00
(No reviews yet) Write a Review
Condition:
New
Adding to cart… The item has been added

Description

ORBEA: GAIN M10I - 2026

Rider and bike working in perfect synergy, you’re breathing hard and your heart is pumping but you are in control and having fun. One of the lightest, most compact e-bike drive system on the market. 50Nm of nearly silent, frictionless assistance gives more than enough power for even the toughest climbs.



SPECS



FRAMESET

FRAME

Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.

FORK

Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1

STEERER TUBE

FSA 1-1/2" Integrated Aluminium Cup



EBIKE

BATTERY

Mahle iX350 36V 353Wh

RANGE EXTENDER

N/A

MOTOR

Mahle motor hub X20, ALC

DISPLAY

Mahle Pulsar One monochrome ANT+ LEV

CHARGER

Mahle Active Charger up to 4A

REMOTE

Mahle ONE Head Unit (BT/ANT+)

REMOTE2

Mahle Handlebar Dual eShifter



DRIVETRAIN

CRANKSET

Shimano Dura-Ace R9200 34x50t

SHIFTERS

Shimano R9270

CASSETTE

Shimano Dura-Ace R9200 11-30t 12-Speed

REAR DERAILLEUR

Shimano Dura-Ace Di2 R9250

FRONT DERAILLEUR

Shimano Dura-Ace Di2 R9250

CHAIN

Shimano CN-9100

COCKPIT

HANDLEBAR

OC Road Performance RP11-R Carbon, Rise 15, Reach 70, Drop 125

STEM

OC Road Performance RP10, -8º



BRAKES

BRAKES

Shimano R9270 Hydraulic Disc

BRAKES CONFIGURATION

N/A



WHEELS

WHEELS

Carbon 42, Tubeless, 21c

TYRES

Pirelli P ZERO™ Race X SmartEVO TLR 700x30c

FRONT WHEEL AXLE

Orbea Thru Axle 12x100mm M12x2 P1 Lite

REAR WHEEL AXLE

Orbea Thru Axle 12x142mm M12x2 P1 Lite



COMPONENTS

SEATPOST

OC Performance XP10-S Carbon, 27.2mm, Setback 20

SADDLE

Fizik Vento Antares R1 Carbon Rail 140mm



ACCESSORIES

FRONT LIGHT

Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50.

REAR LIGHT

Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO

HANDLEBAR TAPE

Orbea Anti-Slippery/Shock Proof
